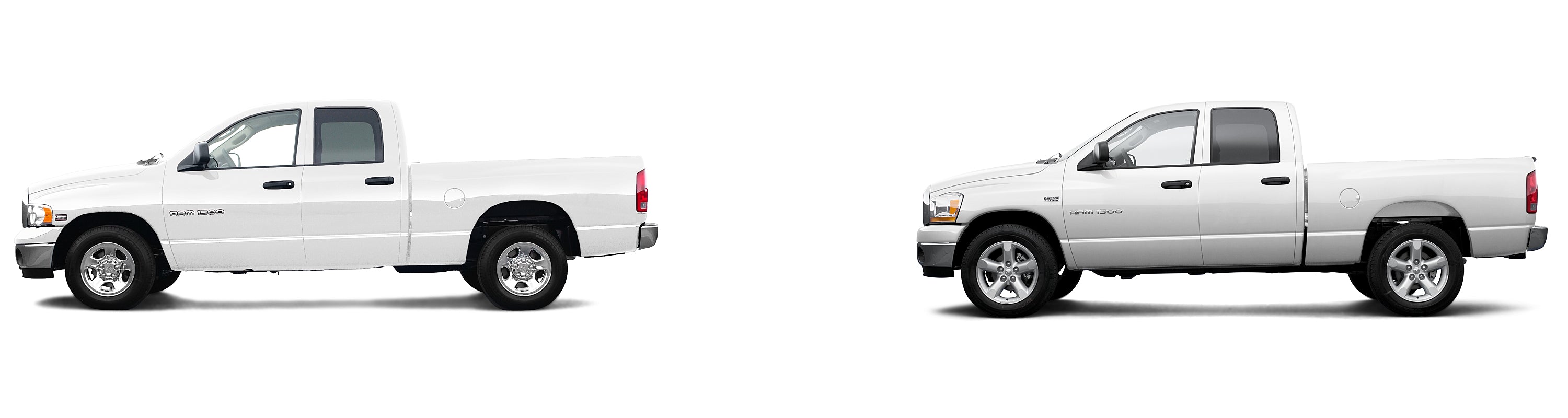

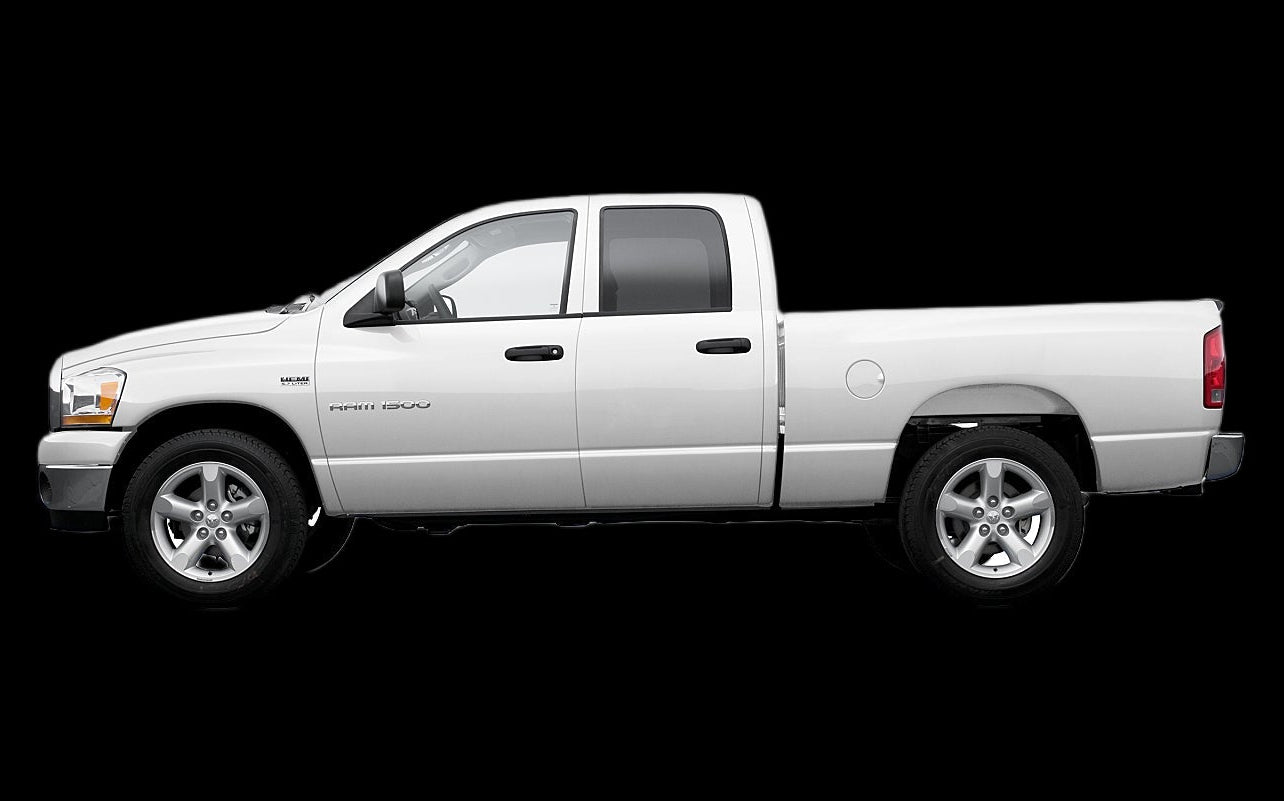

3rd Gen Dodge Ram Seat & Console Upgrade Guide ('02 - '09)
Step 1: ID What You Have
To get you the right set of seats, we have to know what we're trying to match. Identifying the exact interior you have helps us make sure we get you the right thing the first time!
Continue reading below to begin your DIY swap, or give us a call for a full-service experience!
Step 2: Learn What's Out There
Learn what seats you can install in your 3rd Gen Ram. The front bucket seats, center jumpseat-console, and rear seats can all be handled separately!
We want to make sure you get the best bang for your buck by giving you all your options, allowing you to make an informed decision.
Step 3: Get New Seats
Check out our full selection of New & Used Ram Truck Seats. All of our seats ship fully assembled, ready for a quick and easy installation in your vehicle.
If we don't have what you need, simply fill out our contact form and we will be in touch!
OEM Interiors for Gen 3 Ram (2002 - 2005)
Applicable vehicles
- 2002 - 2005 Ram 1500
- 2003 - 2005 Ram 2500
- 2003 - 2005 Ram 3500
Low-Trim Options
A. Sutton grain vinyl in Dark Slate Gray on ST.
B. Sutton grain vinyl in Taupe on ST.
C. Chicago cloth in Dark Slate Gray on ST.
D. Chicago cloth in Taupe on ST.
Mid-Trim Options
E. Boulder cloth in Dark Slate Gray on SLT.
F. Boulder cloth in Taupe on SLT.
High-Trim Options
G. Suede insert in Slate Gray on Laramie and SRT-10.
H. Sutton grain leather in Dark Slate Gray on SLT, Laramie, and SRT-10.
I. Suede insert in Dark Taupe on Laramie.
J. Sutton grain leather in Taupe on SLT and Laramie.
OEM Interiors for Gen 3 Ram (2006 - 2009)
Applicable vehicles
- 2006 - 2008 Ram 1500
- 2006 - 2009 Ram 2500
- 2006 - 2009 Ram 3500
ST Trim
1. Medium Slate Gray. Talladega Grain Vinyl w/Caprice Grain Vinyl.
2. Khaki. Talladega Grain Vinyl w/Caprice Grain Vinyl.
SLT Trim
3. Khaki. Billings Cloth w/Racine Cloth
4. Medium Slate Gray. Billings Cloth w/Racine Cloth
Laramie Trim
5. Medium Slate Gray Windsor Grain Leather w/Perforated Leather Inserts
6. Kahki. Windsor Grain Leather w/Perforated Leather Inserts
Sport Trim
7. Medium Slate Gray Sutton Grain Vinyl w/Dark Slate Gray Royale Grain
Perforated Leather Insert
SRT-10 Trim
8. Medium Slate Gray. Royale Grain Leather
9. Medium Slate Gray. Royale Grain Leather w/Dark Slate Gray Perforated
Preferred Suede® Inserts
3rd Gen Suggested Interior Upgrades
4th Gen Ram Seats in 3rd Gen Trucks
Parts List
The fourth gen Ram, also known as the "DS" Ram, has been in production since 2009. These seats are easy to find, and come in a large variety of variations, including heated and cooled.
You'll need all of the following from the donor vehicle.
- Driver Seat
- Passenger Seat
- Center Seat
- Center Seat Mounting Brackets
- Center Seatbelt Receptor, Female
- Center Seatbelt Male Buckle (Must be from a four door!)
Removing The Old Seats:
The front row of the third generation Ram is a split bench seat, the three separate sections are all interconnected. To remove the seats from the vehicle, first undo the eight floor bolts, and then remove the headrests. Lean the seats back and undo the four 13mm bolts that hold the center seat to the outer seat brackets.
Disconnect the electrical connector that runs from the driver seat through the center seat, to the passenger seat. Disconnect the driver seat floor connector, and remove the seats from the vehicle.
Modifications
Before installation, one of the center jumpseats brackets needs rotated. Simply rotate the driver's side front mounting bracket 90 degrees clockwise, hiding it flush underneath the console.
If you don't have power seats you may need to run an additional 12 volt circuit underneath your seats to supply power to your new seats.
Installation
Install the driver and passenger seats first using the original hardware. The center seat mounting brackets attach to the passenger side seat with included hardware. The two floor brackets will need through bolted for maximum stability, though many forum posts say it's unnecessary.

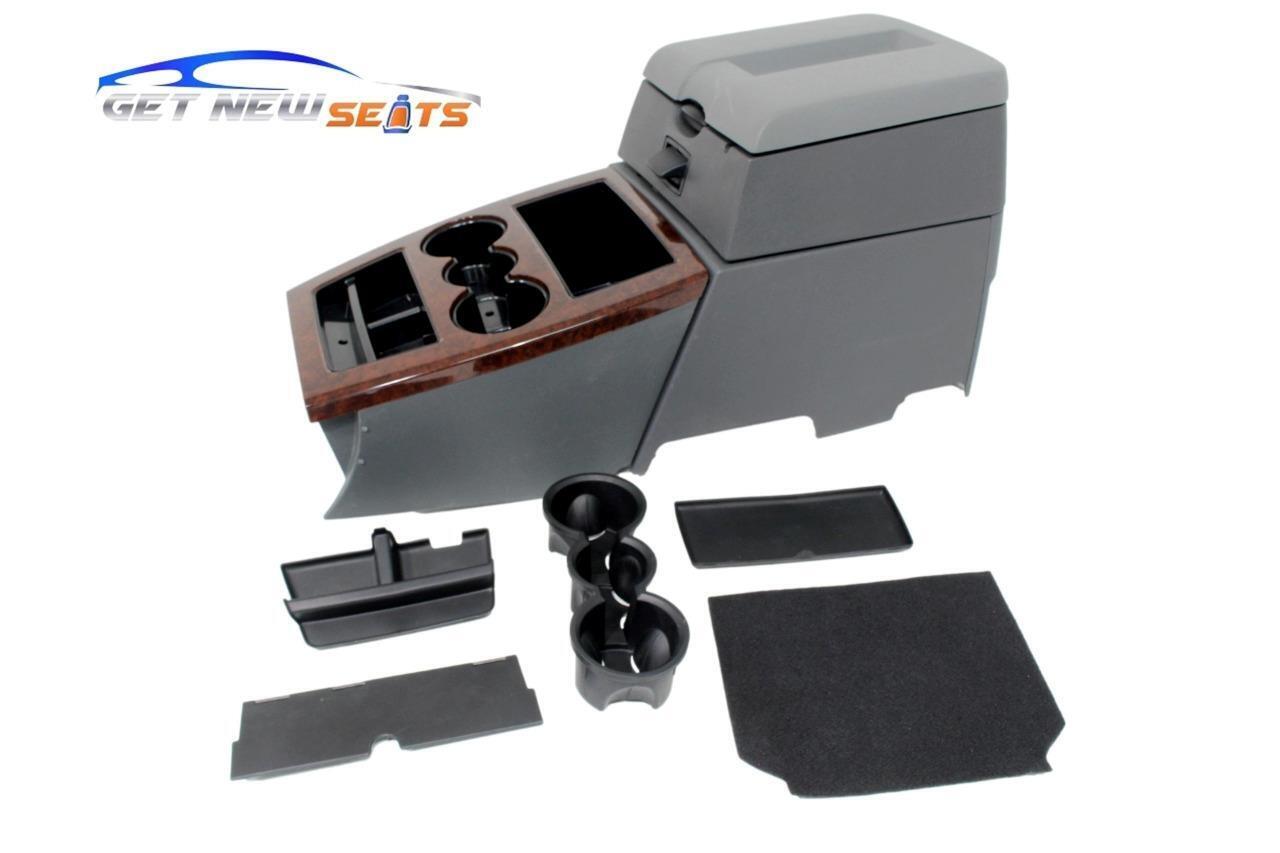

3rd Gen Ram Business Console Swaps
Parts List
- OEM Business Console
- Rubber Insert Set (5 pcs)
- Upper Dash Trim
- Lower Dash Trim
Removing the old console:
The old console needs to be taken out before the new one can be installed. Remove the lower and upper dash trim pieces for replacement.
Modifications
If your truck has a floor shifter for four-wheel drive, you might need to make a small cut in the new console for clearance
Installation
After replacing the upper and lower dash trim, the new console bolts right in, making it a relatively straightforward "take the old one out, put the new one in" process. The console is bolted to the front bench using four bolts, located in the front and back corners.
Addressing the middle seat belt: If your truck has a bench seat, you'll need to pop out the middle seat belt so the console can sit down properly.
Wiring
The new console is plug and play for most Ram trucks, with one plug from the driver's seat connecting to the console for power.
